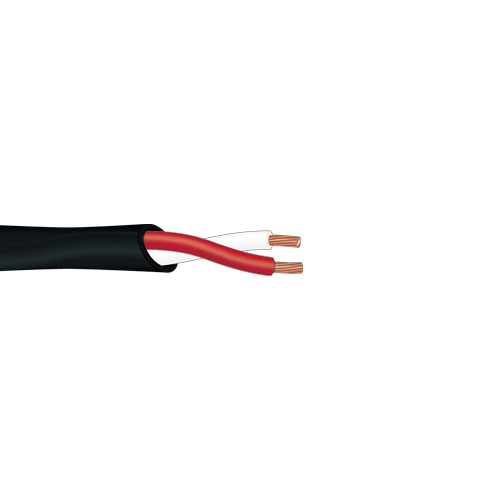

CPR Rated Loudspeaker Cable
CPR Rated Loudspeaker Cable
CANARE CPR-certified speaker cables are designed for fixed installation applications. Featuring an FRNC jacket, CPR compliance, and high-quality OFC conductors, they deliver reliable performance for professional AV installations.
- TECH DATA
| Type | Model | Sales units | Nom. O.D. | Weight | Composition | Electrical characteristics | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| No of cond. | Cross sec area(AWG) | Cond. Comp. | Twist pitch | Cond. DCR | Nom capacitance* | |||||
| m | mm | kg/100m | mm²(AWG) | Q’ty/mm | mm | Ω/100m | pF/m | |||
 Jacket color:BLK | CPR Cca 2S1.5FG-CCA | in multiples of 100 m | 7.0 | 6.8 | 2 | 1.52(16) | 28/0.26 OFC | 45 | 1.26 | 60.2 |
| CPR Cca 2S2.5FG-CCA | 9.1 | 11.5 | 2 | 2.45(14) | 50/0.25 OFC | 55 | 0.9 | 62.5 | ||
 Jacket color:BLK | CPR Cca 4S2.5FG-CCA | 10.9 | 21.1 | 4 | 2.45(14) | 50/0.25 OFC | 80 | 0.76 | — | |
| CPR Cca 4S4.0FG-CCA | 13.9 | 34.2 | 4 | 3.96(12) | 56/0.30 OFC | 100 | 0.44 | — | ||
Key Features and Benefits / 2S**FG-CCA / 4S**FG-CCA Series
- FRNC jacket installation cable
- Fire Performance Tested according to EN 50399, EN 61034-2, EN 60754-2.
- CPR Euroclass Cca-s1a, d1, a1
- Oxygen-free copper (OFC) conductors
