OCC**-7N

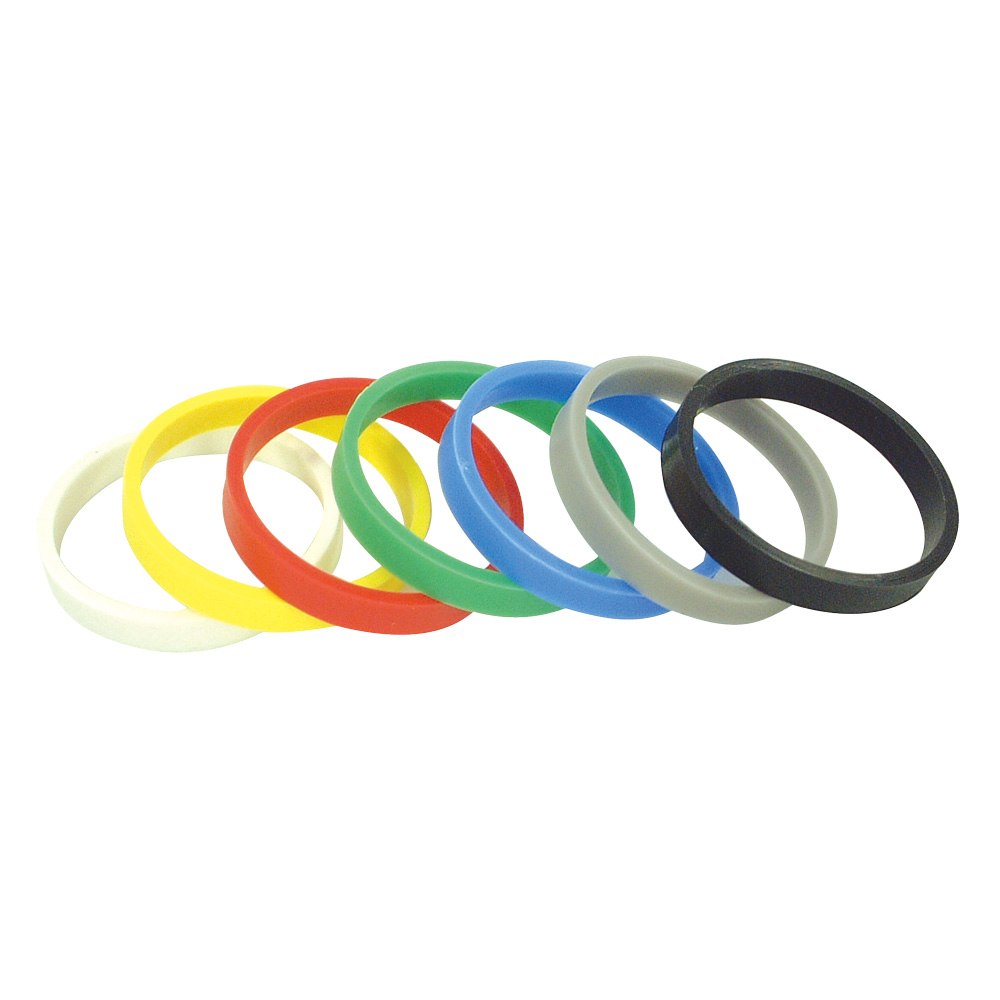

Color Ring
OCC***-N Order
FCC**-7N Wiring Diagram
Slim Profile Japanese HFO Camera Cables
Japanese Style HFO Camera Cables.
OD7mm Slim Profile, PVC Jacket, OC Type for Japanese Camera System
- Canare SEMPT ST 311 is also available.
- TECH DATA
| Type | Model | Length (m) | Weight (kg) | O.D(mm) |
|---|---|---|---|---|
 Cable Color: BLK | OCC10-7N | 10 | 1.2 | φ7.1 |
| OCC20-7N | 20 | 1.9 | ||
| OCC25-7N | 25 | 2.3 | ||
| OCC30-7N | 30 | 2.6 | ||
| OCC50-7N | 50 | 4.1 | ||
| OCC100-7N | 100 | 7.8 |
Key Features and Benefits
- Equipped with slim and lightweight cable.
- FCC100-7N is approx. 5 kg lighter than typical 100m HFO camera cable as FCC100N.
- Heat shrink tubes help in labeling.
- 7-color connector rings included.
Note
The power transmission distance of OCC-7N is approx. half of that of the OCCN.
