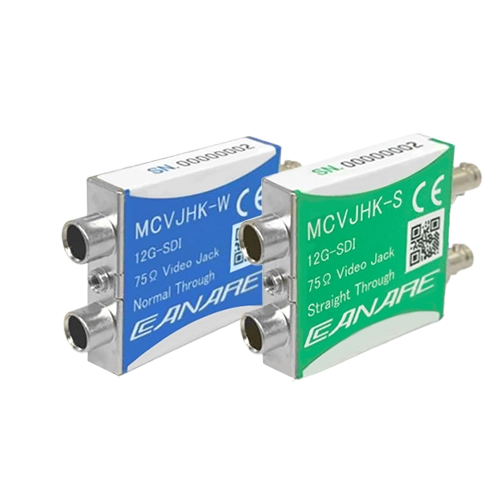

75 ohm Micro Video Jacks (Rear is Micro BNC)

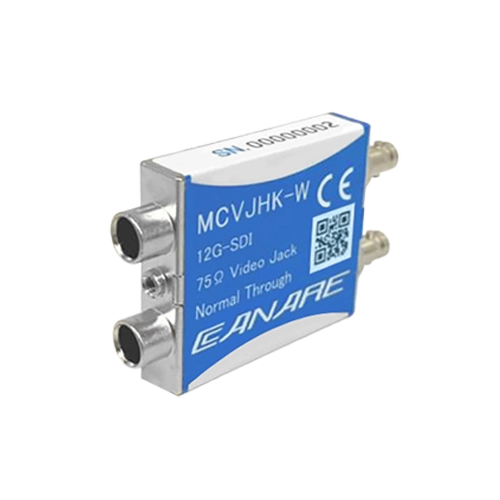

MCVJHK-W

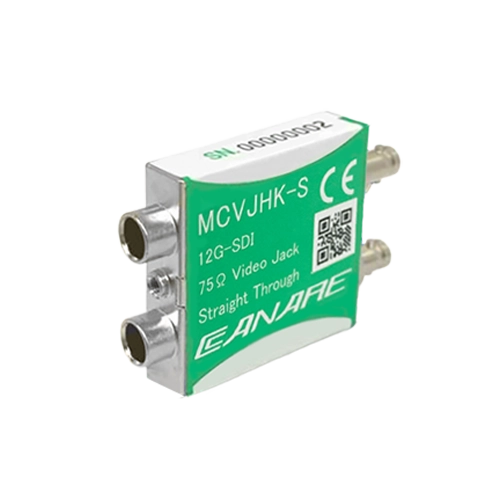

MCVJHK-S
75 ohm Micro Video Jacks (Rear is Micro BNC)
Compatible with 12G-SDI and micro BNC. Our unique, thinnest and lightweight video jacks realize ultimate space efficiency.
- TECH DATA
| Type | Model | Description | Rear Jacks | Standard Package |
|---|---|---|---|---|
  | MCVJHK-W | Normal through | micro BNC | 1 |
  | MCVJHK-S | Straight through | micro BNC | 1 |
Key Features and Benefits
- High density 48 channels of I/O into 1 RU design.
- Video jack weights 35 g and is half of our conventional one.
- Space and weight saving; beneficial to O.B. vans.
- Micro BNC rear jacks.
- Dust-proof shutter.
- Supports 12G-SDI.
- Return Loss: 15dB or greater @1.5GHz, 10dB or greater @3.0GHz, 7dB or greater @6.0GHz, 4dB or greater @12.0GHz
- Both MCVJ-W/S (3G-SDI) and MCVJHK-W/S (12G-SDI) can be mounted on the same panel.
- When using the following plugs on the micro BNC connectors at the rear panel, the extraction tool “BET-HBNC” can be used for insertion/removal: HBCP-D25HDA, HBCP-D25HWA, HBCP-D33UHDA.
Note
Be sure to use with Canare Micro Video Patch Cords.
Not compatible with other plug/patch cables.
Return Loss & Isolation
| MCVJHK-W | MCVJHK-S | ||
|---|---|---|---|
| RL | micro BNC-micro BNC: Normal Through | 15 dB or more @ 1.5 GHz 10 dB or more @ 3 GHz 7 dB or more @ 6 GHz 4 dB or more @ 12 GHz | – |
| micro BNC-Video: Patch Through | 15 dB or more @ 1.5 GHz 10 dB or more @ 3 GHz 7 dB or more @ 6 GHz 4 dB or more @ 12 GHz | ||
| micro BNC-Self: Termination | |||
| Isolation | 45 dB or more @ 6 GHz | 45 dB or more @ 6 GHz | |
(Return Loss for MCVJHK-W)
(Return Loss for MCVJHK-W)
