OFC Line Cables

Audio cable for OFC line.

  • TECH DATA
TypeModelSales unitsNom. O.D.WeightInner cond.InsulationOuter conductorsElectrical characteristics
Cross sec.
area (AWG)
and cond. comp.
Nom. O.D.Nom. O.D.Shield
construction
and coverage
Chan. DCRShield. DCRNom. cap.*
mmmkg/100mmm2/(AWG) Q’ty/mmmmmmmm/ends/carriersohm/100mohm/100mpF/m

GS-6



Jacket color for
GS-4: BLK
GS-6: BLK, RED, ORN, YEL, GRN, BLU
GS-42004.02.70.39(22)
50/0.1(OFC)
0.821.82Carbon plastic shield +
0.1 (OFC)/6/16
93%
4.73.1
GS-6100
200
5.85.01.0(18)
127/0.1(OFC)
1.33.0Carbon plastic shield +
0.1 (OFC)/8/16
92%
1.82.5160
Insulation: polyethylene, Jacket: PVC, Dielectric strength: 500V AC/min.
*Capacitance between conductor to shield.

Key Features and Benefits

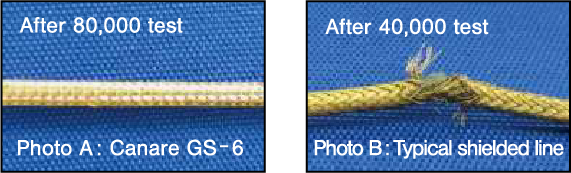

  • Outer conductor of fine 0.1 mm Φ OFC strands provide a highly flexible braided configuration. (See photographs A and B, Fig.2)
  • Center conductor with 127 fine 0.1 mm Φ strands (50 for GS-4) increases durability.
  • Highly flexible braided configuration.
  • Electronic instruments.
  • Oxygen-free copper conductor and shield.
  • Low capacitance and resistance.
Note

The GS-4 and GS-6 have a layer of carbon plastic shield underneath the braided shield (Fig.1) to block out noise.

Shorting will result if this shield contacts the center conductor line, so special care must be taken when connecting the cable.

Fig.1
Fig.2
