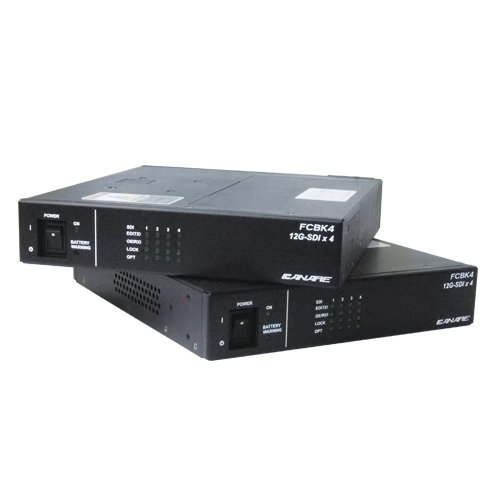

FCBK4 (V-pleat)
FCBK4 (back)
FCBK4
FCBK4 series
Transmit 4-channel SDI over a HFO camera cable.
- TECH DATA
| Model | HFO Connector | EO/OE Modules | EXT Connector | IDX V-plate |
|---|---|---|---|---|
| FCBK4-FF5W1-12G | FCFRA (Female) | 4 x OE12G-101B (RX) | XLR5 Female | No |
| FCBK4-FF5W1-12G-PV | FCFRA (Female) | 4 x OE12G-101B (RX) | XLR5 Female | Yes |
| FCBK4-FM5W2-12G | FCMRA (Male) | 4 x EO12G-100A-** (TX) | XLR5 Male | No |
| FCBK4-FM5W2-12G-PV | FCMRA (Male) | 4 x EO12G-100A-** (TX) | XLR5 Male | Yes |
| Type | Without V-plate | With V-plate |
|---|---|---|
| SDI connector | 4 x 75 ohm BNC | |
| Optical connector | SC (for optional use) | |
| AC input | AC 3P Jack | |
| DC input | XLR4-32F77 (Male) | |
| Power requirement | AC 100-240 V, DC 10-18 V | |
| Max Power Consumption (exclusive of modules) | 10 w | |
| Operating Temp. | -10 to 40 deg C | |
| Dimensions (mm) | 210 x 42 x 240 | |
| Weight (kg) | 1.8 | 1.85 |
Key Features and Benefits
- The best solution for 8K/Quad-link 12G-SDI outside broadcasting.
- Support 12G/6G/3G/HD/SD-SDI and DVB-ASI
- Flexible configcaption by replacing EO/OE modules.
- Capable of Pathological Test Pattern transmission.
- Available in two most common hybrid camera connector interface: Canare FC series (SMPTE/ARIB) and OC series (Hybrid-OPS). Please select the connector that best suits your HFO camera cable.
- XLR5-31-F77 or XLR5-32-F77 connector is used as an external terminal.
- Optical SC connector for optional use
- Mounting brackets for rack mount are available.
Note
Scratches and particles of foreign matter on the tip of the ferrule can disable the fiber-optic transmission. Be sure to cover the cable head with the attached dust cap when it is not in use.
It is safe to use CLASS 1 laser, but it should not be applied directly to the eyes or skin.
Mounting brackets for rack mount are available.
Dimensions does not include protrusions.
Example of the 8K Transmission Use
8K transmission is available by using your HFO camera cables.
