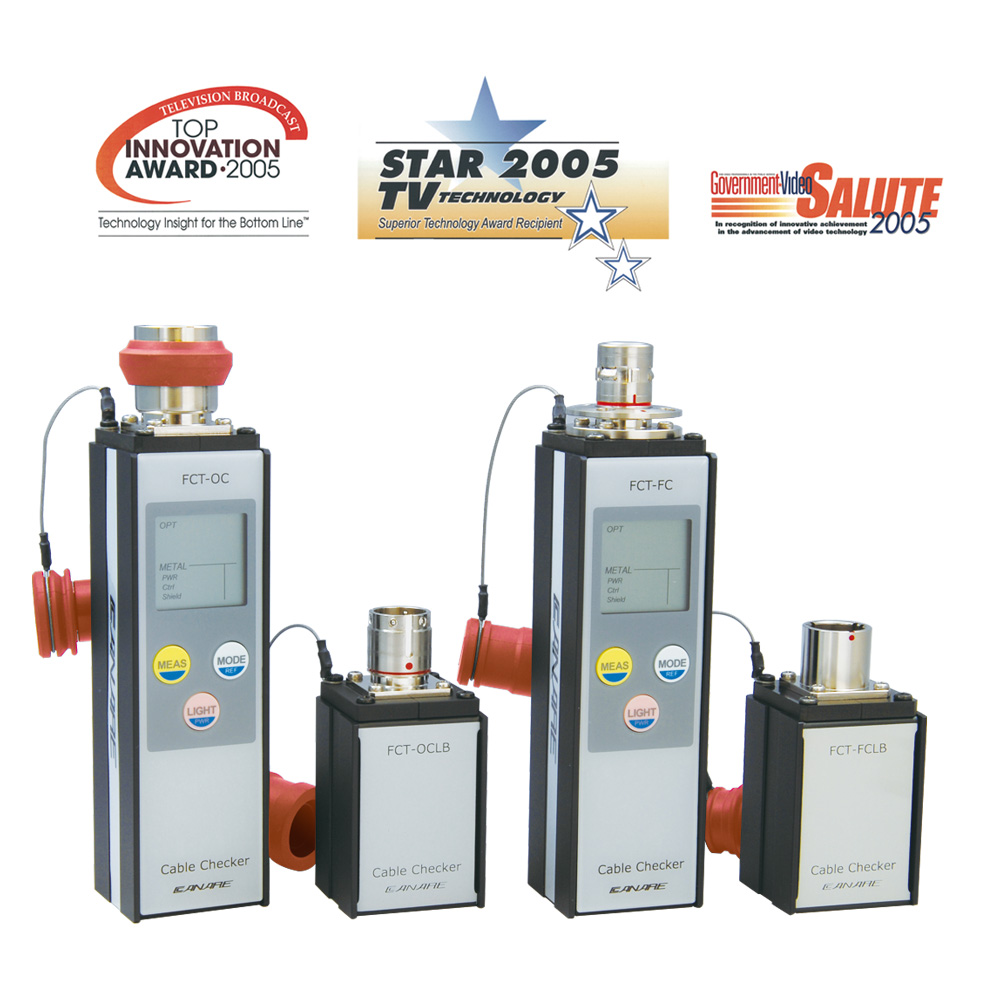

FCT-FCKIT RED, FCT-OCKIT RED
FCT-FCKIT RED, FCT-OCKIT RED

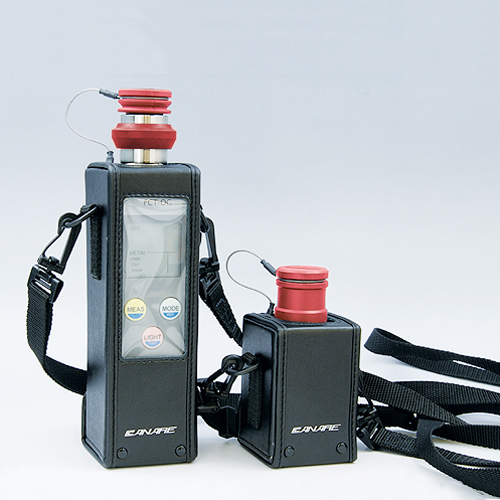

Carrying Cases
Carrying Cases

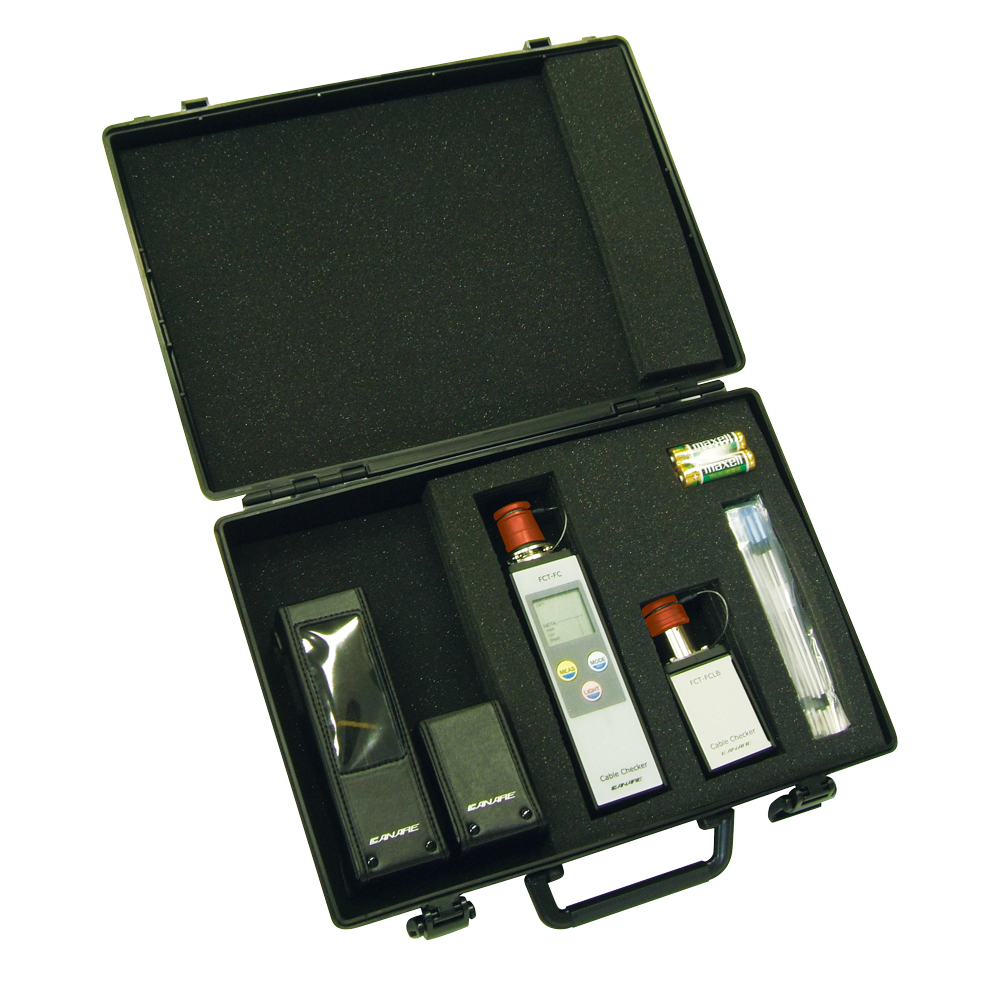

Storage Case
Storage Case
  • End of Sale

Hybrid Fiber-Optic Camera Cable Checker

Canare Cable Checker allows fast, easy confirmation of HFO cables in the field. No heavy equipment to drag around. The compact design features a backlight digital display to measure optic loss/power and electrical continuity. Small and light, Canare Cable Checker helps make mobile installations smooth, secure and constant.

For Inquiries About This Products

  • TECH DATA
Kit ModelIndividual Model
Measuring UnitLoop-back Unit
FCT-FCKIT REDFCT-FC REDFCT-FCLB RED
FCT-OCKIT REDFCT-OC REDFCT-OCLB RED
FCT-FCKIT REDFCT-OCKIT RED
ConnectorCanare FC series (SMPTE/ARIB)Canare OC series (Hybrid-OPS)
LDFP-LD
ConnectorCanare FC series (SMPTE/ARIB)Canare OC series (Hybrid-OPS)
Wavelength1310 nm
Output Power-2.5 dBm
Sensitivity-24 to -2 dBm
Optic SignalsOptical Power and Loss
Electric SignalsOpen-circuit and Short-circuit
Maximum Length3.5 km (Canare LF-2SM9N)
Battery/Life2 pcs of AA/ Approx. 20hours
Operating Temperature-10 to 60 deg C
DimensionsMeasuring Unit: 46 x 46 x 150 mm
Loop-back Unit: 46 x 46 x 65 mm
WeightMeasuring Unit: 380 g
Loop-back Unit: 170 g
AccessoriesStorage case, carrying cases, AA Batteries, and cleaning sticks

Key Features and Benefits

  • Check hybrid camera cables instantly
  • Indicating optic power and loss, electrical open-circuit and short-circuit at the same time
  • Available in two most common hybrid camera connector interfaces
  • All-in-one kit includes storage box, leather case, AA batteries, and CLETOP
Note

To prevent the product from being damaged, please NOTE the following points before connection:

A) Discharge static electricity from HFO camera cable by grounding its metal part.

B) Connect the Loop-back Unit first.

C) Do not connect anything other than the Cable Checker and HFO camera cable.

Note: Red cap model will not work with black cap model.

Camera Cable Checker_ex
example
