WD5.5UHDC**
BCP-DC

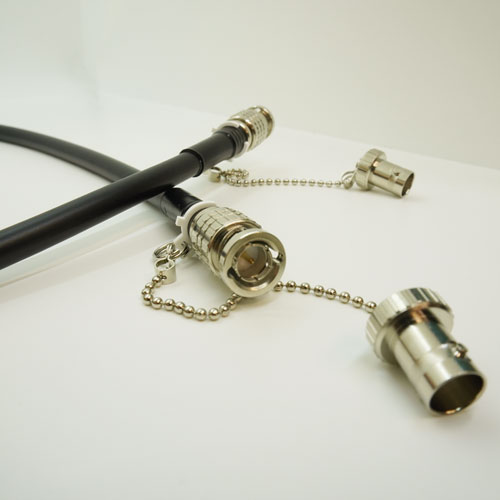

WD5.5UHDC** + BCP-DC

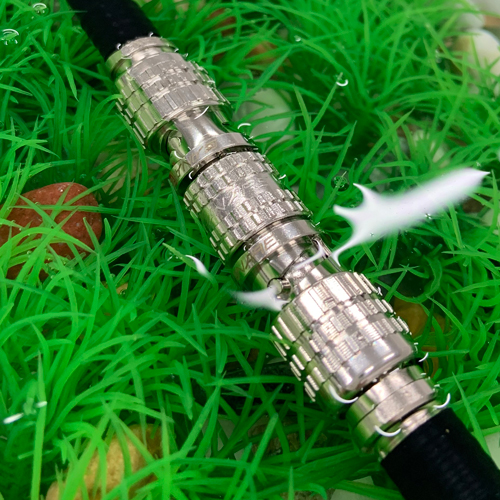

Connector Part Waterproof
BNC Cable (Water-Proof)
High quality harness processing ensures high reliability in both waterproofing and transmission performance.
- The waterproof standard; IPX7
- Tested by connecting WD5.5CUHD** to both end of the extension adapter (such as BCJ-JK).
- These products are assembled in the specific factory using special tools to maintain the water-proof function. Therefore, we are not going to sell connectors separately.
- TECH DATA
| Type | Model | Jacket color | Length(m) |
|---|---|---|---|
BNC(M) – BNC(M) | WD5.5UHDC20 | BLK | 20 |
| WD5.5UHDC30 | BLK | 30 | |
| WD5.5UHDC50 | BLK | 50 |
Key Features and Benefits
- High quality harness processing ensures high reliability in both waterproofing and transmission performance.
- SMPTE ST 2082-1 compliant.
- Canare crimp design ensures quick and reliable installation.
- Gold plated center contact.
- Lock mechanism improves reliability by preventing shifting or detaching of the center pin.
| Type | Model | Specification | Standard package |
|---|---|---|---|
 | BCP-DC | BNC waterproof connector cap | 20 |
Key Features and Benefits
- BNC caps with protective chain are sold separately.
