75 Ohm Micro-miniature Coaxial Connectors
Canare’s exclusive micro miniature connectors, KC series: specially designed for 4K/8K UHD equipment. Our PCB mount solutions provide flexible layout and reliable connectivity on 12G-SDI signal path. Products are 12GHz verified and guaranteed SMPTE ST2082-1.
- TECH DATA
[ RCB Mount Receptacles ]
| Type | Model | Description | Standard package |
|---|---|---|---|
  | KCM-PC | Straight | 20 pcs |

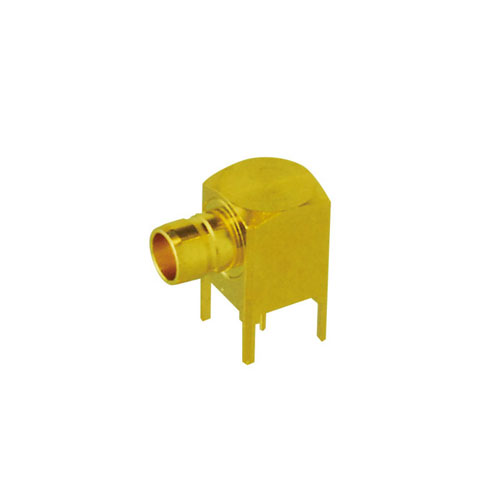

  | KCM-LR | Right Angle | 20 pcs |
[ KC to BNC Conversion Adapter ]
| Type | Model | Description | Nut Driver Bit | Standard package |
|---|---|---|---|---|
  | BCJ-KCM | Rear Mount, Hex Nut | – | 20 pcs |
  | BCJ-FKCM | Front Mount, Grooved Nut | NDT-7/16 | 20 pcs |
[ Cable Assemblies ]
| Type | Model | Description | Length(mm) | |
|---|---|---|---|---|
| Plug A | Plug B | |||

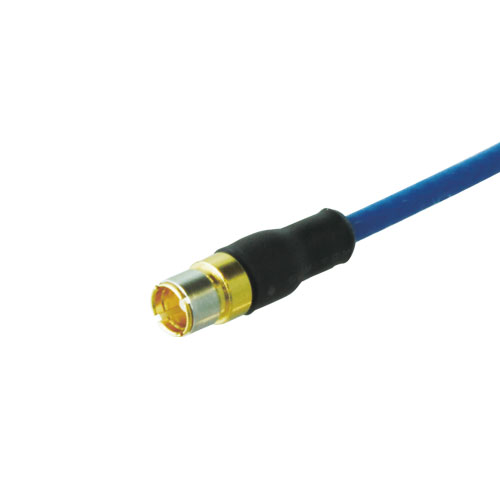

  | KC1.2R-0015-S | Straight | Straight | 150 |
| KC1.2R-0020-S | 200 | |||
| KC1.2R-0030-S | 300 | |||
  | KC1.2R-0015-L | Right Angle | Right Angle | 150 |
| KC1.2R-0020-L | 200 | |||
| KC1.2R-0030-L | 300 | |||
 | KC1.2R-0015-SL | Straight | Right Angle | 150 |
| KC1.2R-0020-SL | 200 | |||
| KC1.2R-0030-SL | 300 | |||
Key Features and Benefits
- DC to 12 GHz; meets the SMPTE 2082-1 return loss requirements.
- Return loss: 26 dB @ 1.5 GHz, 20 dB @ 3 GHz, 15 dB @ 6 GHz, 10 dB @ 12 GHz
- Snap-on engaging
- Durable design; beneficial for maintenance.
- Temperature range; -25 to 85 degree C
- The best flexibility on PCB design
- Cable Assemblies jacket is FEP(Blue).
Note
BCJ-FKCM requires the nut driver bit NDT-7/16 for installation and removal.
Contact for the details.
