[ Crimp Plugs ]

Type	Model	Suitable Cable		Center Pin	Sleeve	Die Set	Extraction Tools	Standard package
		Canare	Others
	HBCP-D25HDA	L-2.5CHD, L-2.5CHLT	1855A	BN1214	BN7136	TCD-D253F	BET-D/H, BET-HBNC Common Tool	20 pcs
No Image	HBCP-D25HWA	L-2.5CHWS, V4-2.5CHW	–	BN1214	BN7141	TCD-D253F
No Image	HBCP-D33UHDA	L-3.3CUHD	–	BN1215	BN7003A	TCD-D253F
	HBCP-D53A	L-4.5CHD	1694A	BN1218	BN7016	TCD-D534F	BET-D/H Common Tool
No Image	HBCP-D55UHD	L-5.5CUHD	–	BN1219	BN75004A	TCD-D55UHD

Key Features and Benefits

• Return loss : 26dB @ 3GHz, 20dB @ 6GHz, 15dB @ 12GHz.
• SMPTE ST 2082-1 compliant.
• Canare crimp design ensures quick and reliable installation.
• Gold plated “snap locks” center pin.
• Beryllium copper outer contact.
• Come with a position mark on the body for better visibility mating.
• Lock mechanism used on insulation improves reliability by preventing shifting or detaching of the center pin.

The New Canare HBCP Series

Model		HBCP-D25HDA, HBCP-D25HWA, HBCP-D33UHDA	HBCP-D53A, HBCP-D55UHD	HBCP-D25HD, HBCP-D25HW, HBCP-D33UHD, HBCP-D53
Status		Current	Current	Previous
Return Loss		≥15dB@DC-12GHz	≥15dB@DC-12GHz	≥8dB@DC-12GHz
Connector O.D.		φ7.8mm	φ8.5-8.9mm	φ7.82-8.5mm
Extraction Tools / Distance Between Center of Plugs	BET-D/H / 12mm	YES	YES	YES
	BET-HBCP / 8mm	YES	NO	NO
	Common Tools / Min. 8mm	YES	YES	NO
Application		Rack wiring, Extremely narrow space, Video SFP	50-100M distance range, 12G-SDI sensitive connection	Rack wiring, Narrow space, 12G-SDI routers/switchers

[ PCB Mount Receptacles]

Type	Model	Description	Nut Driver Bit	Standard package
	HBCJ-LRK	Right Angle	NDT-HBC	20 pcs

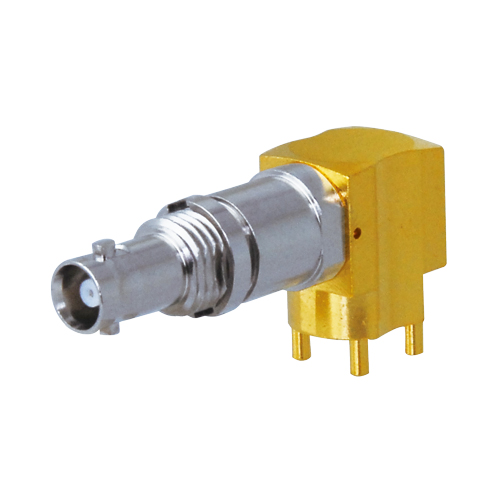

	HBCJ-LRK/1	Right Angle, Long type
	HBCJ-FEMK	Edge Mount

Key Features and Benefits

• Lock mechanism used on insulation improves reliability by preventing shifting or detaching of the center pin.
• SMPTE ST 2082-1 compliant
• Combination of HBCJ-LRK/1 and HBCJ-FEMK is effective for staggered arrangement
