BCJ-FPLV-12G
BCJ-FPC
BCJ-FPLV01

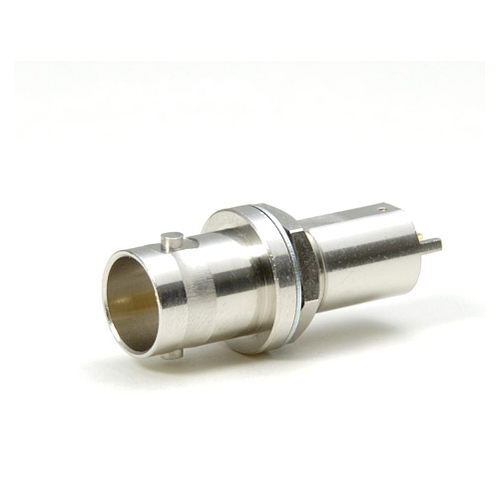

BCJ-RPC/1
BCJ-FPLHA
BCJ-FPLV-L
BCJ-RPC
BCJ-FPLVA
BCJ-FPC02
BCJ-FPLV-L can be stacked over BCJ-FPLVA on a PCB as shown.
75 Ohm BNC PCB Mount Receptacles (Hex Nut Type)
BCJ-FP and RP Series are 75 ohm BNC connectors which have a hex nut and lock washer for front or rear-mounting on a panel.
- Any cleaning solvents cannot be used. This leads to insulation problems.
- Insulation material: m-PPO (m-PPE)
- TECH DATA
[ Front Mount ]
| Type | Model | Description | Stud Position | Panel Mount | Standard package |
|---|---|---|---|---|---|
  | BCJ-FPLV-12G | Right Angle, for 12G-SDI | Vertical | Front: Hex nut and lock washer | 20pcs / 100pcs |
 | BCJ-FPLVA | Right Angle | |||
 | BCJ-FPLV01 | Right Angle, Low Cost | |||
 | BCJ-FPLV-L | Right Angle, Long Neck | 10pcs | ||
 | BCJ-FPLHA | Right Angle | Horizontal | 20pcs / 100pcs | |
 | BCJ-FPC | Straight | – | ||
 | BCJ-FPC02 | Straight, Low Cost | – |
[ Rear Mount ]
| Type | Model | Description | Stud Position | Panel Mount | Standard package |
|---|---|---|---|---|---|
 | BCJ-RPC | Straight, Through Hole Mount | – | Rear: Hex nut and lock washer | 20pcs / 100pcs |
 | BCJ-RPC/1 | Straight, Surface Mount | – |
Key Features and Benefits
- BCJ-FPLV-12G is specially designed to minimize the return loss for 12G-SDI
- Return loss:
- BCJ-FPLV-12G: 15 dB @ 6 GHz, 10 dB @ 12 GHz.
- BCJ-FPLV-L: 26.4 dB @ 3 GHz, Others: 26.4 dB @ 1 GHz.
BCJ-FPLV-12G
BCJ-FPLVA
BCJ-FPLV01, BCJ-FPLV-L
BCJ-FPC, BCJ-FPC02, BCJ-RPC
| BCJ-FPLV-12G*, BCJ-FPLVA*, BCJ-FPLV01*, BCJ-FPLV-L* | BCJ-FPLHA* | BCJ-FPC*, BCJ-FPC02* | BCJ-RPC/1, BCJ-RPC | |
|---|---|---|---|---|
| Panel Hole Dim. |   |   |   |   |
| BCJ-FPLV-12G | BCJ-FPLVA, BCJ-FPLV01, BCJ-FPLHA | BCJ-FPLV-L | BCJ-FPC, BCJ-FPC02 | BCJ-RPC | |
|---|---|---|---|---|---|
| PC Board Hole Dim. |  |  |  |  |  |
 t2.0 |  t2.0 |  t2.0 |  t2.0 |  t2.0 |
